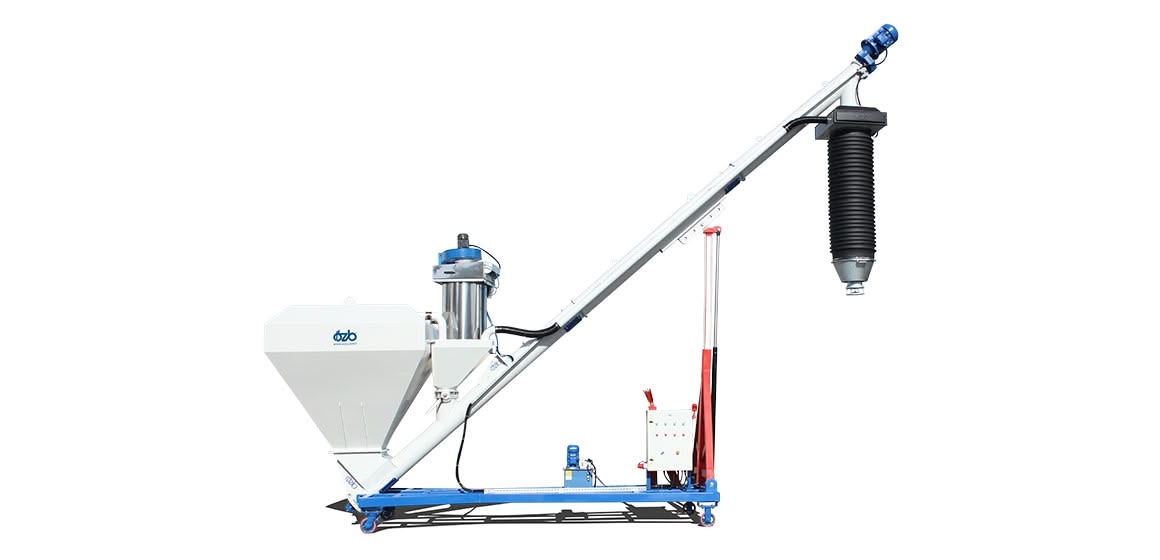

Mobile Tanker Loading System
The material flowing from the cut FIBC (AKA Bulk Bag) is transported to the tanker via a telescopic loading bellow fed by a screw conveyor in a completely dust-free environment, driven by an easy-to-use electronic control panel.
Description
The material flowing from the cut FIBC (Bulk Bag) is transported to the tanker via a telescopic loading bellow fed by a screw conveyor in a completely dust-free environment, driven by an easy-to-use electronic control panel.
System conveniently installed on a supporting mobile frame, equipped with 4 wheels, each one with 1.6 T loading capacity, 2 brakes and stow stationary safety feet.
Features
- 2,000 L capacity hopper with FIBC (Bulk Bag) cutting blade - Customisable screw feeder for any materials - Adjustable telescopic double chute loading bellow (2,000mm height) - Dust collection filter - Hydraulic piston for height adjustment - Analog control board with full featuresDownloads
Delivery
We proudly deliver Australia Wide, to NZ & throughout the Oceania region
Shipping costs and timeframes are advised upon quote and at confirmation of purchase.
Warranty
All our products come with 2 Year Manufacturers Warranty,
provided the product has been installed to the manufacturers specifications
and has not been miused or mistreated.
Warranty does not apply to consumable items.
