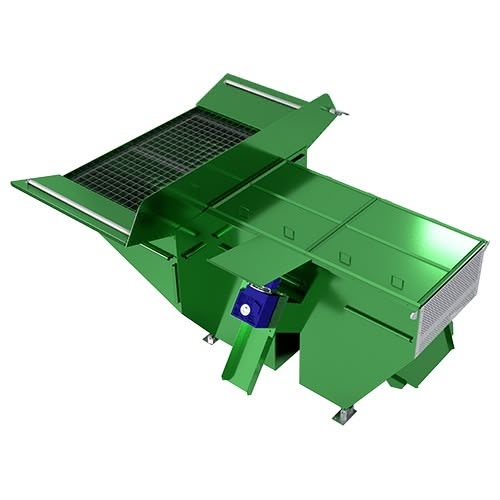

CRS Concrete Recycling System
CRS is designed to Recycle aggregates from Wet Ready-mix concrete with a high level of classification of coarse and fine materials.
Description
CRS has a large holding hopper for 2m³ of capacity where pumps and truck mixers can drop returned concrete easily, self-embedded water pipes let users easily clean their truck on return from delivery. The CRS also has a small footprint.
Most important aspect is the separation of aggregates according to their type/size and grey water is discharged to ponds via drain channels.
CRS is offered in 3 different configurations depending on capacity and feeding type.
· CRS20: nominal 15-20 m³/h, suitable for Transmixer and dozer feeding
· CRS30: nominal 25-30 m³/h, suitable for Transmixer and dozer feeding
· CRS.MIX: nominal 25-30 m³/h, suitable for Transmixer, dozer and pump feeding
Aggregate Size: 3-25 mm
Powder or Sand Size: 0-3 mm
Control Voltage: 24 V
Total Motor Power: 15 kW
Controlled by PLC and control panel automation system In the automation of the CRS recycling system, the following specified settings can be set by the responsible person at the facility via the panel the system is encrypted.
1- Taking grey water and washing
2- Getting clean water/ washing
3- Adjustable washing time
4- Manual test possibility
5- Optional machine speed adjustment
